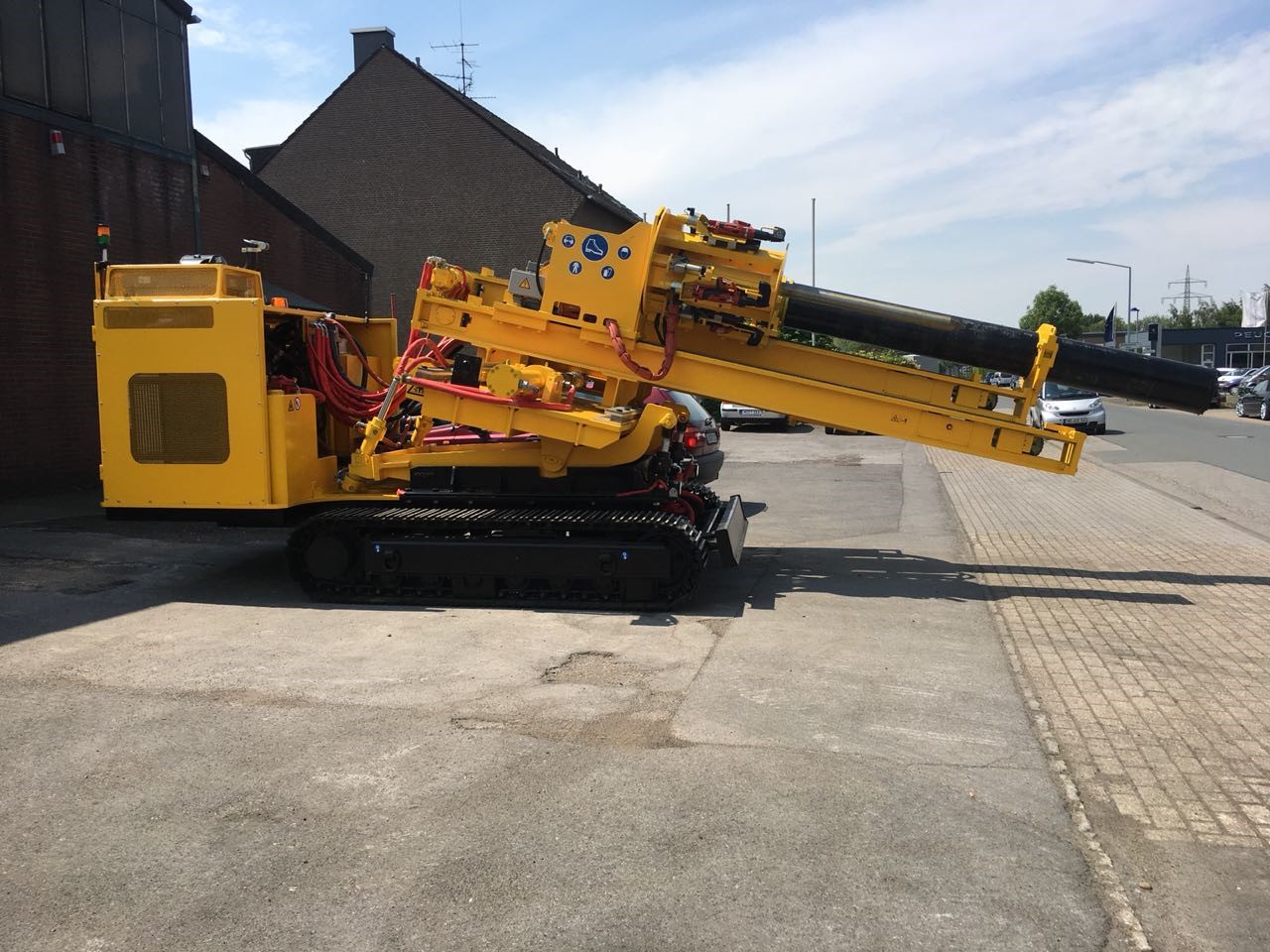

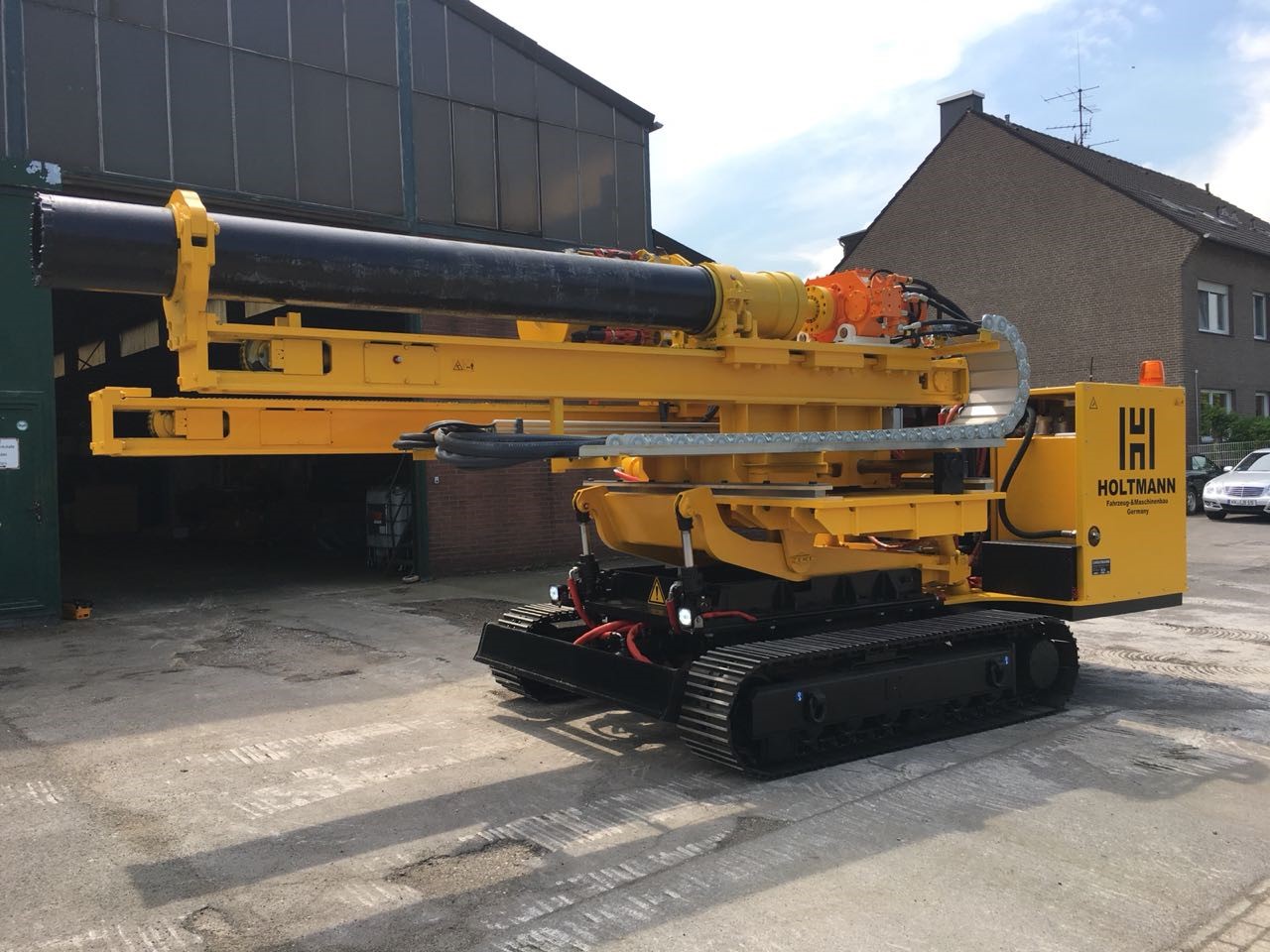

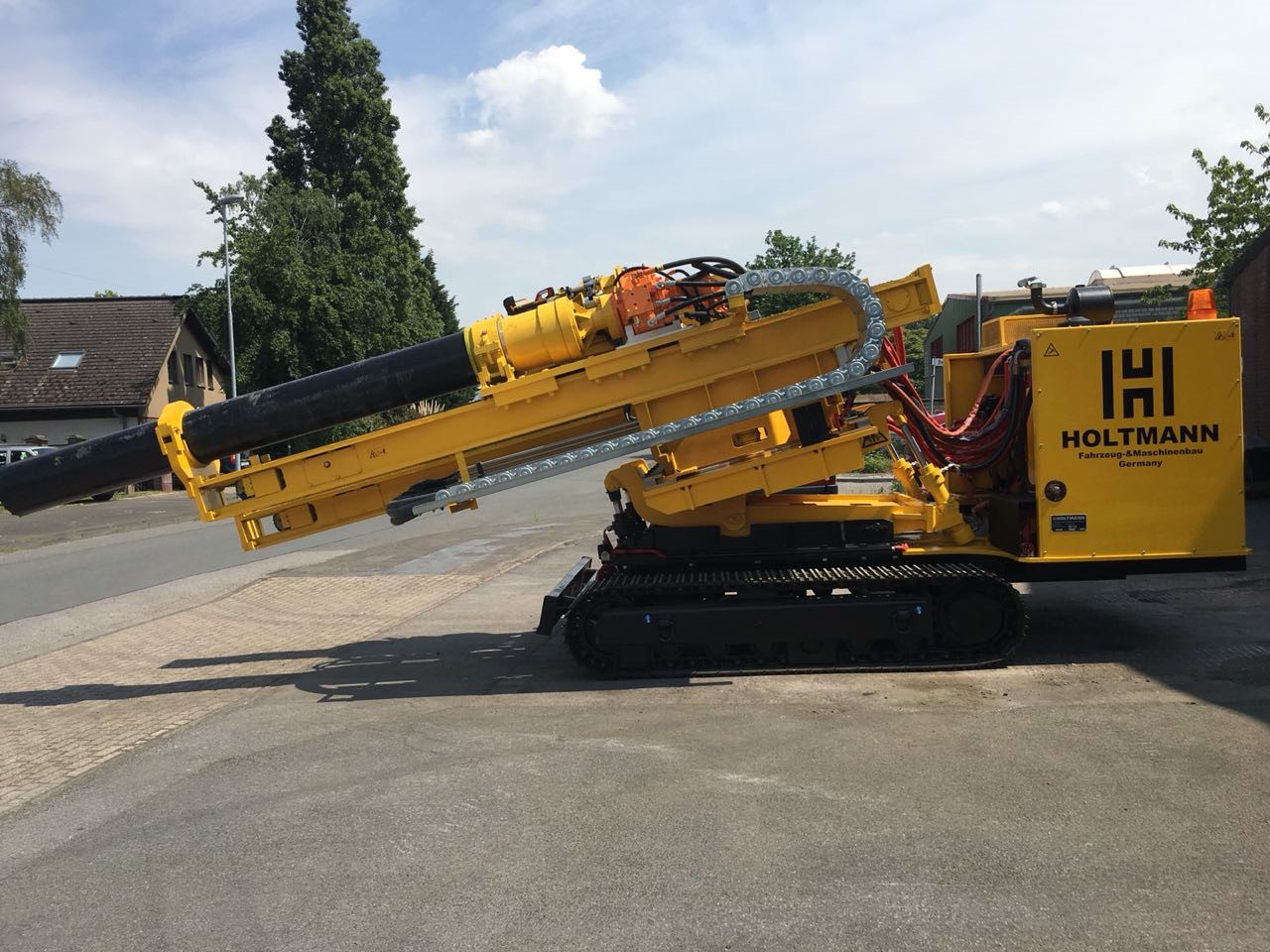

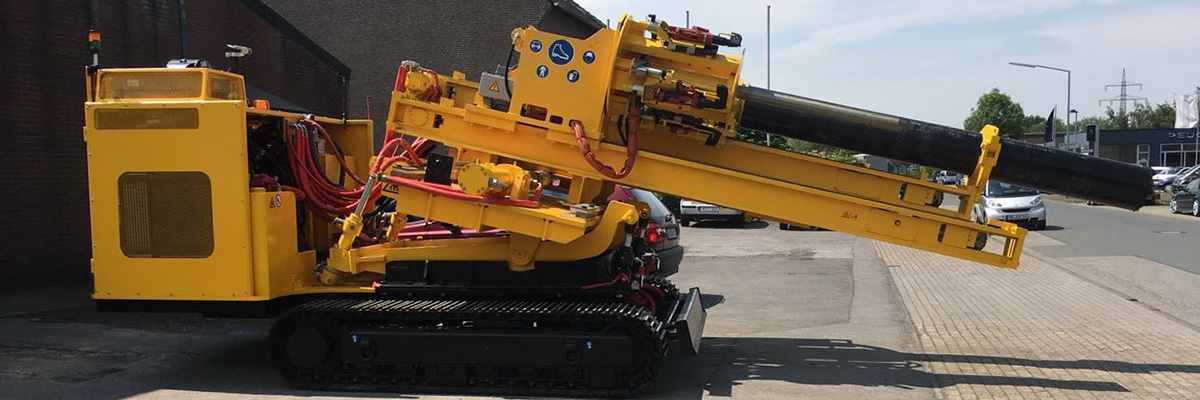

The tap hole drilling and resleeving machine has been developed together with the renowned company Maschinentechnik Roth based in Hilden, Germany. Both companies are working in steel plant business for many years and have a wide knowledge in the field of special machinery and equipment.
Our efficient and timesaving system is an all-in-one solution for our customers, drilling oft he old tap hole, resleeving and fixation of the new taphole is being done by machine without any intervention by personnel, only the operator will handle the machine via radio remote control and is able to work from a safe position with best view on the working cycle.
The machine can be equipped with steel or rubber plate crawler undercarriage, type of driving can be either diesel or electric motor.
Drilling and resleeving unit are positioned by hydraulic cylinders to reach an optimized position of the unit in front of the tap hole. An angle sensor helps to position the machine more precisely with regard to the converter tilting angle.
